RA VARNISHING DAY EDITION 2020: A MOMENT IN TIME
SEPTEMBER 2020
For the first time in the Royal Academy’s 252-year history, Varnishing Day couldn’t happen this year due to Covid-19, and the Summer Exhibition was delayed. As a result, Niall and another 99 of his fellow Academicians created a piece of work on 1st June; the ‘RA Varnishing Day Edition 2020: a Moment in Time’, to support the RA and thank our Friends for their ongoing support.
Brought together in a beautifully designed portfolio by award-winning production house Hurtwood, this is a unique collection of never-seen-before work by some of the most illustrious artists from across the world. The portfolio represents the first time in history that the RA’s community of Royal Academicians have collaborated on one piece of work – a taking of the temperature of British art at a crucial time, documenting what our RAs were doing, thinking and making on 1 June.
All sales of the portfolio support the RA and help us ensure that we are here for you – and everyone – long into the future. You can purchase the Portfolio here https://shop.royalacademy.org.uk/varnishing-day-portfolio.
OPEN HOUSE
SEPTEMBER 2020
Two of our projects will be taking part in this year’s Open House. Our Stirling Prize shortlisted social housing scheme, Darbishire Place in Whitechapel, and the London Academy of Music and Dramatic Art, will be opening their doors with architect led tours on the 21st September. Open House London is the world’s largest architecture festival, giving free public access to 800+ buildings, walks, talks and tours over one weekend in September.
FROM WORKSHOP TO SITE
SEPTEMBER 2020

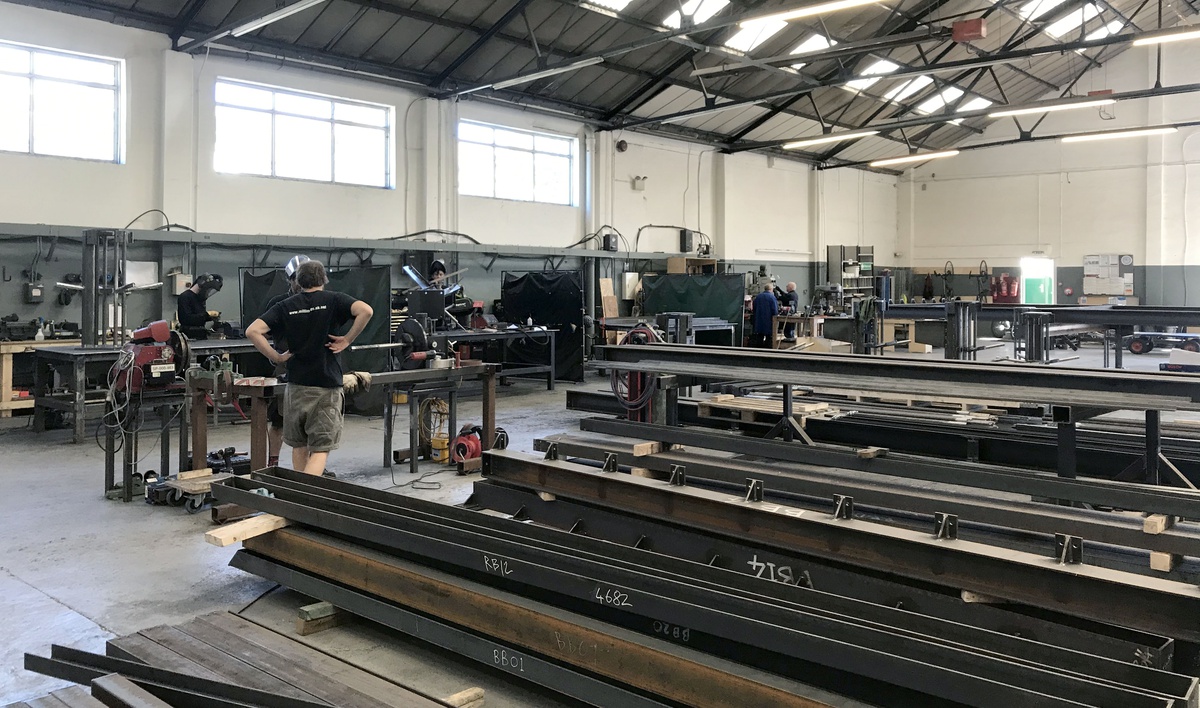

At Millimetre’s workshop in Brighton, a tremendous steel skeleton has been rapidly emerging. It will form the delicate superstructure of a garden pavilion-cum-guesthouse destined for the Isle of Wight. In the main hangar, a healthy collection of gently oxidizing off-the-shelf steel sections and staggeringly sharp, bespoke milled elements is set back from a row of socially-distanced workspaces. Millimetre’s metal workers have been working around the clock (and in the excessive summer heat) to cut, weld and grind the heap in front of them into the many precise modular components that will form the pavilion’s columns, floor and roof. An assembly line has been formed to increase the efficiency of fabrication, with a station each for repetitive rotary welding tasks, rotary grinding, welding using custom jigs and more complicated non-linear welds. As the steel passes through the workshop, glistening segments come to form elaborate sculptures. Adjacent to the metalworking bays is a six-axis robot arm programmed to cut high density foam into jigs for the most intricate welding alignments. This will be essential to the success of the central roof truss node, where nine tubular sections converge. More on this will follow at a later date.
The pavilion will be lifted off the ground by cantilevering trusses held from the main columns, which are formed of four tubular sections tied together by intermittent thin plates along their height. The lower portions of these columns, which sit beneath the floor build-up, are amicably referred to as the daleks. These stub columns are the first pieces to be finalized, quickly assembled in tandem to confirm tolerances, and sent away to be painted for corrosion protection before arriving to site.

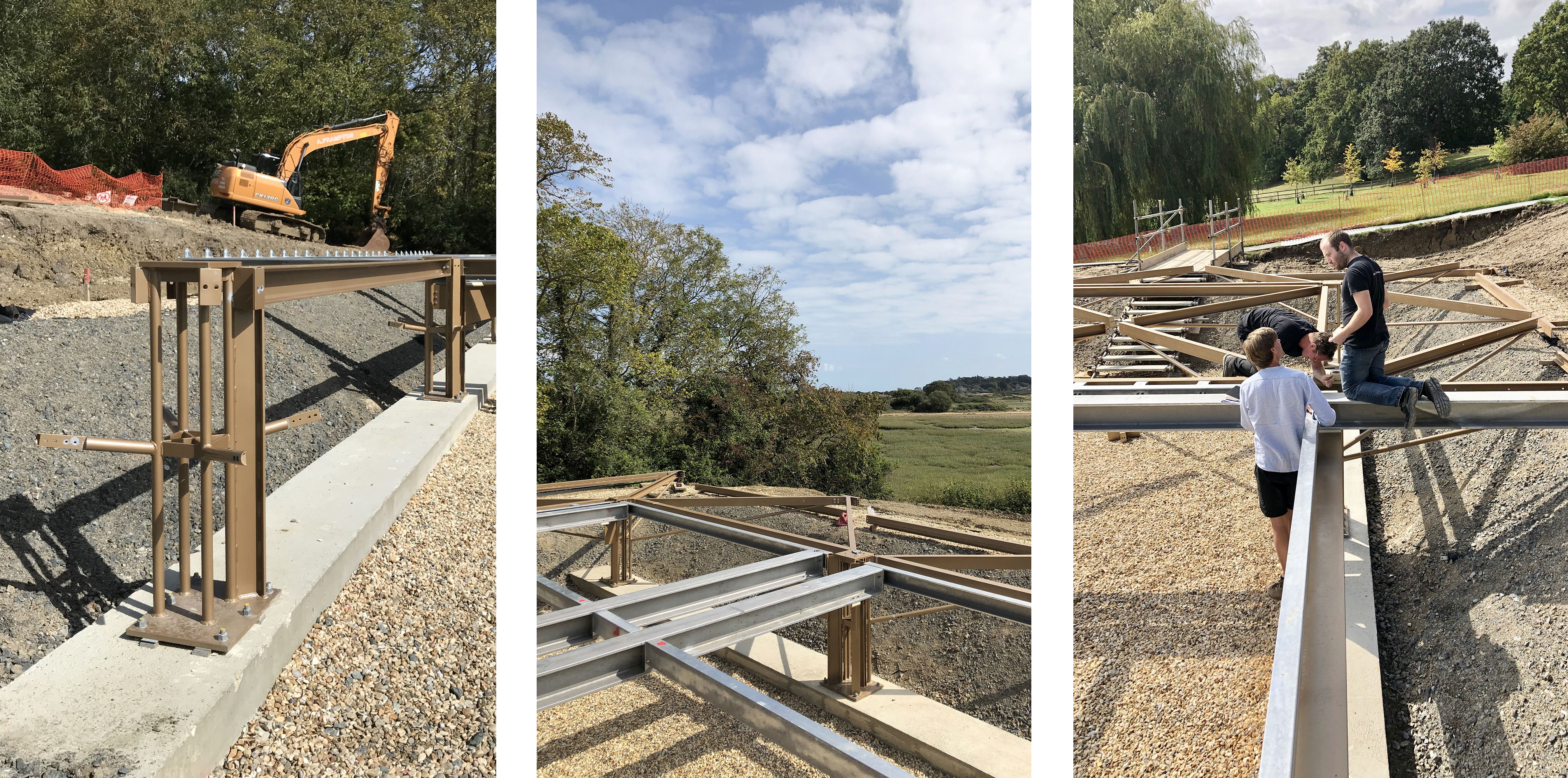

On the northeast coast of the Isle of Wight, the site falls to overlook a protected marshland with tidal flows fed by the Solent. A shallow depression with raking banks at the bottom of the hill will conceal the feet of the pavilion superstructure; the baseplates of the stub columns now erected atop the long strip foundations and adjoined to form the triangulated support for the floor and deck above. Located to capture rainwater dropping from the overhanging roof eaves, the perimeter gravel drain will also mark the boundary between building and landscape, with tall, wild grasses merging with the wetland beyond..
As the pavilion envelope will be formed largely of full-width glass spans closely abutting the columns, erecting the steel frame precisely is critical. Despite a remarkable installation tolerance of +/- 3mm diagonally across each 5 x 5m bay, the stub columns must be shimmed to ensure exact alignment and verticality. Between them, the galvanised (and thus silvery) internal floor beams are distinguishable from the external floor beams, which are coated to resist corrosion and painted to achieve a warm metallic finish. With the cantilevering terrace beams installed additionally, a datum is formed approximately 180mm below the intended finished floor level from which the remainder of the pavilion will rise..
Back in Brighton, the columns which will stand on the shoulders of the stubs now installed on site are laid out one by one. Their height and slenderness astound – a true feat for the structural engineers, Smith & Wallwork. It is through, not around these columns that the thermal envelope will run, with tall and narrow glazing centred on each column between the four vertical tubes. The next test-build will involve hoisting up these columns, narrowly missing the suspended lights of the workshop, to bolt on the roof trusses via the halving joints rigidly reaching out to receive them. That dramatic and exciting update will have to follow.
